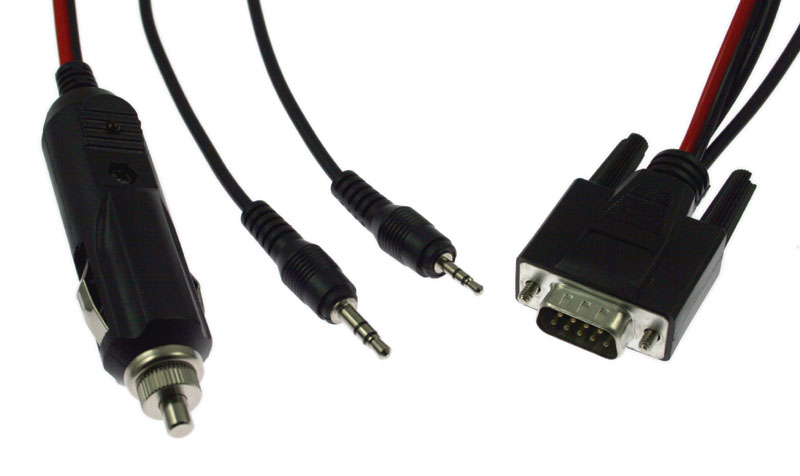

Connects a tracker to a handheld radio with a 3.5mm stereo earphone jack and 2.5mm stereo mic jack. This configuration is typical of most Icom models and will work with many other radio types. Power is provided through a 1-amp fused cigarette lighter plug with power indicator LED, or optionally an unfused Anderson Power Pole connector. Cable length is 19" / 50 cm.
Cable compatibility guide
Wiring:
| D-Sub | 3.5mm | 2.5mm | Power |
|---|
| 1 | | Tip | |
| 5 | Tip | | |
| 6 | Sleeve | Sleeve | Gnd |
| 7 | | | + |
Available Options:
Power connector:
