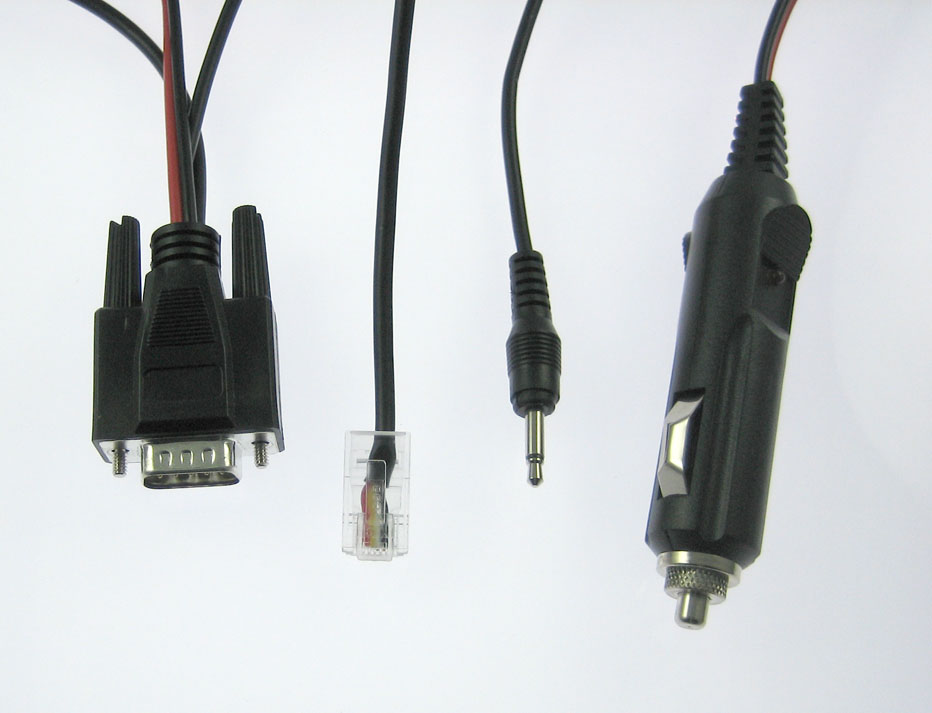

Connects any of our stand-alone APRS trackers to a Kenwood mobile radio with an RJ45 microphone jack and 3.5mm speaker jack. Power is provided to the tracker through a 1-amp fused cigarette lighter plug with power indicator LED, or optionally an unfused Anderson Power Pole connector. Cable length is 19" / 50 cm.
Cable compatibility guide
Wiring:
| D-Sub | RJ45 | 3.5mm | Power |
|---|
| 1 | 3 | | |
| 3 | 5 | | |
| 5 | | Tip | |
| 6 | 4+6 | Sleeve | Gnd |
| 7 | | | + |
Available Options:
Power connector:
